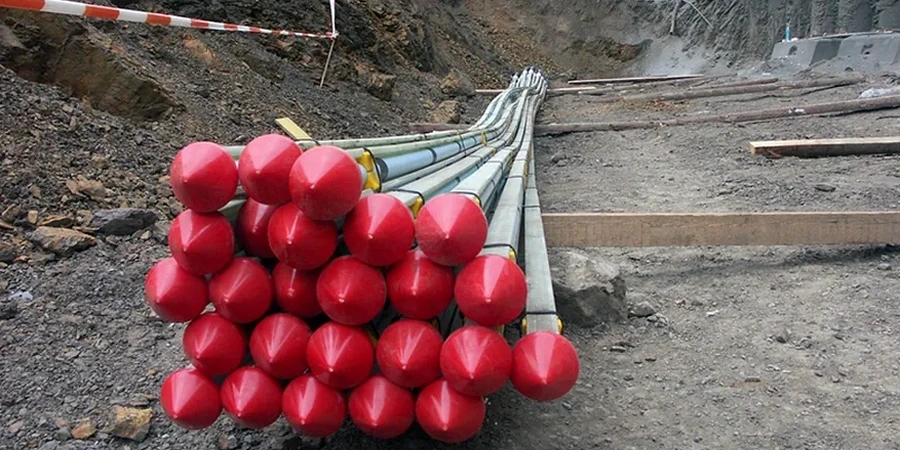

Springfield’s geology presents a specific challenge for deep excavation and retaining structures: the layering of low-plasticity loess over dense Illinoisan glacial till creates a profile where bond stress varies sharply with depth. A conservative assumption on ultimate bond resistance in the loess zone can oversize the anchor bond length unnecessarily, while underestimating the till’s capacity leads to short-term creep. Our anchor design process focuses on calibrating the grout-to-ground interface using site-specific data, rather than relying solely on presumptive values from lookup tables. We reference ASCE 7 load combinations and IBC Chapter 18 to establish the required factor of safety for both temporary and permanent tiebacks. When the site investigation reveals soft clays or high groundwater, we often recommend a trenchless investigation with CPT to capture continuous tip resistance and sleeve friction before finalizing the anchor layout.
In Springfield’s layered loess-over-till profile, the bond zone length is defined by site-specific pullout tests, not by generic tables.
Service characteristics in Springfield Illinois
Demonstration video
Local geotechnical conditions in Springfield Illinois
Springfield’s downtown has undergone multiple phases of redevelopment since the mid-19th century, leaving behind undocumented basements, old utility lines, and heterogeneous fill that complicate anchor installation. Drilling through this urban fill without proper grouting control can cause sudden loss of flush, leading to uncased hole collapse and damage to adjacent pavements. A second risk arises from seasonal moisture variation in the near-surface loess; a passive anchor designed for saturated summer conditions may experience a reduction in stiffness during dry winter months when the soil shrinks away from the grout column. We mitigate this by specifying post-grouting techniques for the bond zone in highly plastic or moisture-sensitive strata, and by requiring lock-off load verification 24 hours after initial stressing to detect early relaxation. The IBC requires that all permanent tiebacks be accessible for periodic re-stressing and inspection, a detail that is often overlooked in design-build delivery but is enforced in our submittal packages.
Our services
Anchor design is not a standalone task—it integrates with the broader geotechnical and structural framework. In Springfield, we deliver the following components as part of a complete tieback design package.
Tieback Anchors for Excavation Support
Design of prestressed active tiebacks for soldier pile and lagging walls, secant pile walls, and diaphragm walls. We determine the total anchor force per linear foot using apparent earth pressure diagrams adjusted for Sangamon County soil conditions.
Passive Soil Anchors for Slope Stabilization
Analysis of global slope stability with passive anchors installed in the lower two-thirds of the slope. Anchor capacity is mobilized gradually as the slope creeps, reducing the long-term driving force in colluvial and till deposits.
Anchor Testing and Performance Monitoring
Specification of on-site suitability tests, performance tests, and extended creep tests per PTI recommendations. We analyze load-extension curves to validate the ultimate bond stress used in design and adjust the bond length if required.
Questions and answers
What is the difference between active and passive ground anchors?
Active anchors are tensioned during installation to apply a pre-determined force against the structure, which limits lateral movement from the start. Passive anchors are not pre-stressed; they develop resistance only after the soil mass or structure begins to move and transfers load to the tendon. In Springfield, active tiebacks are typical for building excavations near existing foundations, while passive anchors are common for stabilizing highway cuts where some deformation is acceptable.
How do you verify the bond zone capacity in Springfield’s soils?
We perform on-site pullout tests on sacrificial anchors installed within the same soil unit as the production anchors. A minimum of three tests per distinct stratum—typically the loess and the underlying glacial till—is required to establish a statistically reliable ultimate bond stress. Creep behavior is monitored over an extended period for permanent anchors to confirm that the bond zone does not exhibit excessive time-dependent movement.
What design code applies to permanent anchors in Illinois?
The International Building Code (IBC 2021) governs the design of permanent soil anchors through Chapter 18. We also follow the Post-Tensioning Institute’s PTI DC35.1-14 recommendations, which are the nationally recognized standard for prestressed rock and soil anchors. For anchors located within Illinois Department of Transportation right-of-way, the AASHTO LRFD Specifications apply.
What is the typical cost range for anchor design services in Springfield?
The fee for a complete anchor design package—including subsurface data review, anchor load calculations, corrosion protection specification, and preparation of testing protocols—ranges from US$1,080 to US$3,900 depending on the number of anchors, the complexity of the soil profile, and whether the project requires a finite element model for global stability. This figure covers engineering only; anchor materials and installation are separate.
Can existing retaining walls be retrofitted with passive anchors?
Yes, but the feasibility depends on the wall’s structural capacity to accept concentrated anchor forces. A reinforced concrete wall or a soldier pile wall can be cored to install new anchors, while unreinforced masonry walls are generally unsuitable. In Springfield’s older neighborhoods, we often combine a retaining wall evaluation with an anchor retrofit design to confirm that the wall face can distribute the anchor reaction without cracking. More info.
